Rifey-05

Description
Technical characteristics
Documentation
Information

Цена: договорная

Mechanical vibrocompressing line “Rifey-05” is hi-tech equipment to produce various building products from low-slump concrete by cubic vibrocompressing. This complex allows producing a wide variety of construction materials, cover stones and wall blocks, border stones, paving slabs, lawn lattice, and other improvements of different shapes and configurations are among them. Shape of end products produced at this line is almost ideal, thereby construction grows more economical. Therewith, shift to making other types of products and the corresponding rearrangement of the line requires 1 hour maximum and consists in replacing punching molds.

While developing “Rifey -05” it was considered that it will operate in Russia and CIS countries with a great number of regions experiencing deficiency in own building industry. Complex design provides easy access to its nodes and units, and the utilized components are uniform in most cases, and are supplied in the required amount. Consequently, replacing broken down elements does not imply high material and time expenditures.

Block making machine “Rifey-05” is classified as compact equipment; its dimensions are 8.5×2.0×2.7 м. The minimum area required for its operation equals to 150 m2, therewith the line installation can be both indoors and just under shelter, though anyway the ceiling height should be 3 m minimum. The equipment itself is highly reliable, undemanding to location conditions and is defined by comparatively low operating costs.  It is comparatively easy to operate and provide service, and does not require high-qualified staff.

Technical characteristics:

Efficiency of the line during manufacture of
masonry block....................................................150 items per hour
baffler block .....................................................220 items per hour
paving slabs ......................................................7.5-10 m?/hour
product forming area .........................................390х790 mm
height of formed fabrications ..............................70-230 mm
installed capacity ...............................................18.7 kW
mass ...............................................................3 t
staff ................................................................3-5 persons

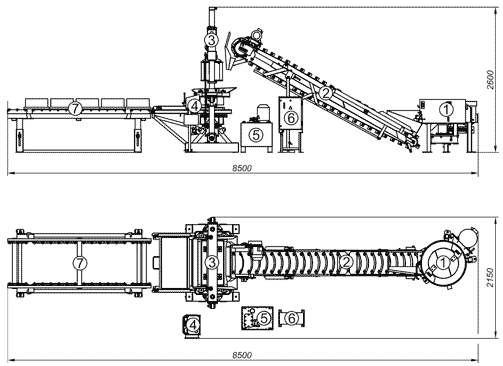

"RIFEY-05" line content

1. Mixing machine
2. Conveyor for feed of mixture
3. Vibrocompressor
4. Line operating desk
5. Pump unit
6. Electrical cabinet
7. Shelf stand

Assortment of manufactured building materials and products:

The line turns out building blocks including hollow ones, solid and shutter, decorative and cover stones, development elements, paving slabs of different geometry, border stones and lawn fences.

Design advantages of the line:

The line contains all assemblies essential for independent manufacture of products: vibrocompressor, batcher, mixing machine, mixture charger, accumulator, oil pumping station and electrical cabinet.
Easy operating and maintenance of the line doesn’t need a high proficiency of a staff.
Good repairability in virtue of convenient access and simplicity of disassembly of every unit, application of uniform and sufficient parts.
High portability of the line: length – 8.5 m, width - 2 m, height – 2.7 m.
Possibility of quick (about 1 hour) realignment of the line to manufacturing of another type of production in virtue of matrixes change.
